TI-92 Tokens

In order to save space and execution time, the TI-92 tokenizes all BASIC programs, functions, expressions, etc. before running or evaluating them. Rather than trying to interpret multiple-character command names in real-time, all simple commands are compressed down to one or two bytes. All possible tokens that can exist in a program are shown below.

Color coding is as follows:

• Gray squares indicate tokens that are undefined or never used in the stored variable.
• Blue squares contain a link to a note describing the corresponding token's function.
• Red squares indicate two-byte tokens and contain a link to a table of possible second-byte values.
• White squares indicate tokens that take no arguments.
• Green squares indicate tokens that take one argument (popped off the stack).
• Purple squares indicate tokens that take more than one argument or a variable number of arguments (popped off the stack).

Two-byte tokens have the second byte first in the memory order so it is pushed onto the stack first. When the first byte (1Ch, E3h or E4h) is encountered, the second byte is popped off of the stack and executed.

TI-92 Tokens	Least Significant Digit
Most Significant Digit		0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
	0	note		r	s	t	u	v	w	x	y	z	a	b	c	d	e
	1	f	g	h	i	j	k	l	m	n	o	p	q	link	note	note	note
	2	note	note	note	note		e	i	-[infin]	[infin]		undef	false	true	note	note	acosh()
	3	asinh()	atanh()				cosh()	sinh()	tanh()				acos()	asin()	atan()
	4					cos()	sin()	tan()					abs()	angle()	ceiling()	floor()	int()
	5	sign()	()	e^()	ln()	log()	fPart()	iPart()	conj()	imag()	real()	approx()	tExpand()	tCollect()	getDenom()	getNum()
	6	cumSum()	det()	colNorm()	rowNorm()	norm()	mean()	median()	product()	stdDev()	sum()	variance()	unitV()	dim()	matlist()	newList()	rref()
	7	ref()	identity()	diag()	colDim()	rowDim()	T	!	%	r	not()	-	note	note	note
	8		|	xor	or	and	<		=		>		+	.+	-	.-	*
	9	.*	/	./	^	.^		solve()	cSolve()	nSolve()	zeros()	cZeros()	fMin()	fMax()		polyEval()	randPoly()
	A	crossP()	dotP()	gcd()	lcm()	mod()	intDiv()	remain()	nCr()	nPr()	PRx()	PRy()	RP()	RPr()	augment()	newMat()	randMat()
	B	simult()		explist()	randNorm()	mRow()	rowAdd()	rowSwap()	arcLen()	nInt()	[Pi]()	()	mRowAdd()			exact()
	C	comDenom()	expand()	factor()	cFactor()	[integral]()	d()	avgRC()	nDeriv()	taylor()	limit()	propFrac()	when()	round()	note	left()	right()
	D	mid()	shift()	seq()	listmat()	subMat()	note	rand()	min()	max()	note	note		note	note	note	note
	E	note	note	note	link	link	note	©	note	note	note
	F	note

1C+XX Tokens	Least Significant Digit (second byte)
Most Significant Digit		0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
	0				x	x2	y	y2	xy	Sx	Sy	x	y	nStat	minX	minY	q1
	1	medStat	q3	maxX	maxY	corr	R2	medx1	medx2	medx3	medy1	medy2	medy3	xc	yc	zc	tc
	2	rc	c	nc	xfact	yfact	zfact	xmin	xmax	xscl	ymin	ymax	yscl	x	y	xres	xgrid
	3	ygrid	zmin	zmax	zscl	eye	eye	min	max	step	tmin	tmax	tstep	nmin	nmax	plotStrt	plotStep
	4	zxmin	zxmax	zxscl	zymin	zymax	zyscl	zxres	zmin	zmax	zstep	ztmin	ztmax	ztstep	zxgrid	zygrid	zzmin
	5	zzmax	zzscl	zeye	zeye	znmin	znmax	zpltStrt	zpltStep	seed1	seed2	ok	errornum	sysMath	sysData	regEq	regCoef
	6	tblInput	tblStart	tbl	fldpic

E3+XX Tokens	Least Significant Digit (second byte)
Most Significant Digit		0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
	0		note	getKey()	getFold()	switch()		ord()	expr()	char()	string()	getType()	getMode()	setFold()	ptTest()	pxlTest()	setGraph()
	1	setTable()	setMode()	format()	inString()	&	DD	DMS	Rect	Polar	Cylind	Sphere	(	)	[	]	{
	3	}	,	;		'	"

E4+XX Tokens	Least Significant Digit (second byte)
Most Significant Digit		0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
	0		ClrDraw	ClrGraph	ClrHome	ClrIO	ClrTable	Custom	Cycle	Dialog	DispG	DispTbl	Else	EndCustm	EndDlog	EndFor	EndFunc
	1	EndIf	EndLoop	EndPrgm	EndTBar	EndTry	EndWhile	Exit	Func	Loop	Prgm	ShowStat	Stop	Then	Toolbar	Trace	Try
	2	ZoomBox	ZoomData	ZoomDec	ZoomFit	ZoomIn	ZoomInt	ZoomOut	ZoomPrev	ZoomRcl	ZoomSqr	ZoomStd	ZoomSto	ZoomTrig	DrawFunc	DrawInv	Goto
	3	Lbl	Get	Send	GetCalc	SendCalc	NewFold	PrintObj	RclGDB	StoGDB	ElseIf	If	If...Then	RandSeed	While	LineTan	CopyVar
	4	Rename	Style	Fill	Request	PopUp	PtChg	PtOff	PtOn	PxlChg	PxlOff	PxlOn	MoveVar	DropDown	Output	PtText	PxlText
	5	DrawSlp	Pause	Return	Input	PlotsOff	PlotsOn	Title	Item	InputStr	LineHorz	LineVert	PxlHorz	PxlVert	AndPic	RclPic	RplcPic
	6	XorPic	DrawPol	Text	OneVar	StoPic	Graph	Table	NewPic	DrawParm	CyclePic	CubicReg	ExpReg	LinReg	LnReg	MedMed	PowerReg
	7	QuadReg	QuartReg	TwoVar	Shade	For	Circle	PxlCrcl	NewPlot	Line	PxlLine	Disp	FnOff	FnOn	Local	DelFold	DelVar
	8	Lock	Prompt	SortA	SortD	UnLock	NewData	Define	Else (Try..EndTry)	ClrErr	PassErr

Notes:

• Note 1:

TI-92 Character Codes

The TI-92 follows the ANSI and ASCII standards for printable and non-printable characters that match those found on the PC.

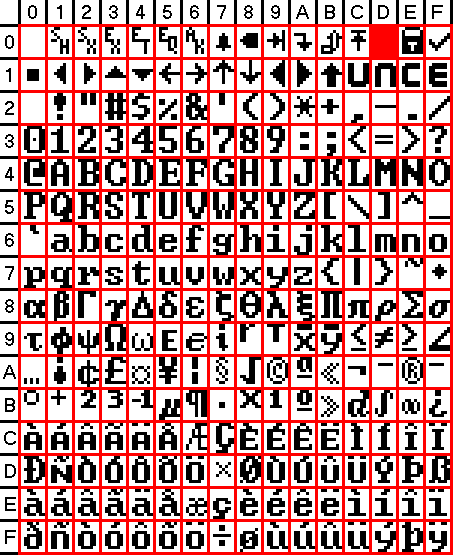

All characters and their character codes in the TI-92 8x10-pixel home screen entry font are shown here:

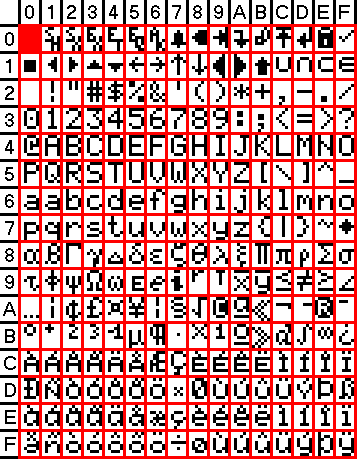

All characters and their character codes in the TI-92 6x8-pixel home screen font are shown here:

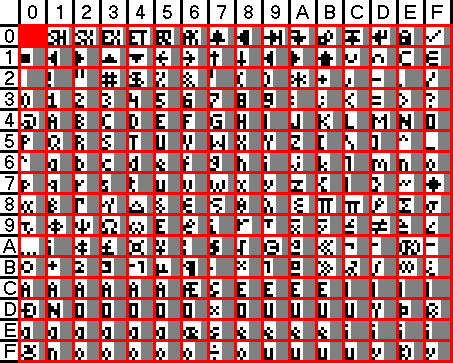

All characters and their character codes in the TI-92 8x6-pixel menu font are shown here:
