TI-83 Link Protocol Guide - Screenshots

The TI-83's screenshot ability is "silent," which means that the calculator does not need to be put in a special mode. Screenshots can be taken any time the calculator is ready to accept a keypress.

The protocol used for getting a screenshot is shown below. For information on packet formats, click here.

Step	Direction			Packet
1				SCR
2				ACK
3				DATA - Format described below.
4				ACK

The data packet contains a 768-byte monochrome bitmap (1 bit per pixel). Each bit has a value of 1 if the corresponding pixel is dark or a value of 0 if the corresponding pixel is light.

The pixel order is left-to-right, then top-to-bottom (See figure below).
Byte 0 defines the first 8 pixels in the left side of the top row of the screen. Bytes 1-11 define the rest of the first row, bytes 12-23 define the second row, etc.

Example:

PC:	03 6D 00 00	Screenshot request
TI:	83 56 00 00	Acknowledgement of request
	83 15 00 03 <768 bytes plus 2 byte checksum>	Screen data
PC:	03 56 00 00	Acknowledgement of data

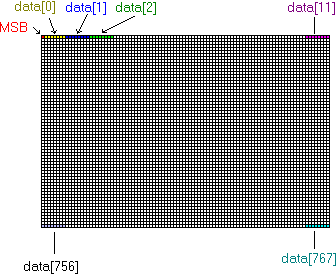

The following figure demonstrates byte ordering of the pixels if the bitmap is in a 768-element array data[]:

Note that this format is different from the standard Windows bitmap format, which specifies a value of 1 if the pixel is light and bottom-to-top row order.
